Camera Tester, WANLUTECH 8MP TVI CVI AHD CVBS Analog Camera Tester 4.3 inches Screen UTP Cable Test RS485 PTZ Control Audio Test 12V Power Output

20 reviews

Amazon

Brand: WANLUTECHWeight: 0.88lb

Features

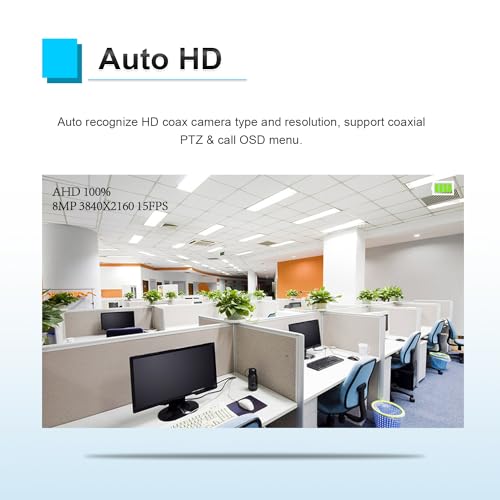

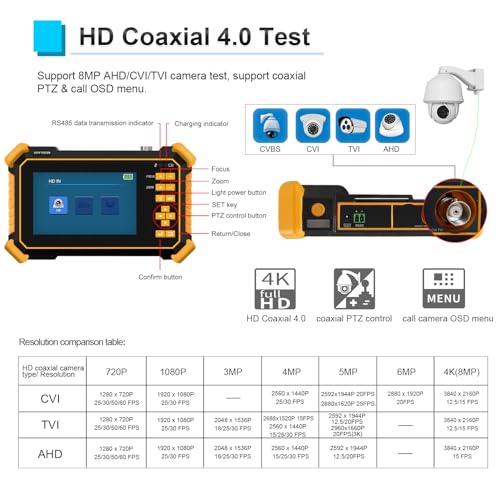

WANLUTECH analog camera tester supports to test max 8MP AHD/8MP TVI/8MP CVI/Analog CVBS camera. Using HD app can automatically recognize AHD CVI TVI cameras and display resolution and frame rate on the screen, support coaxial PTZ & call OSD menu (PLEASE NOTE that this model doe not support test IP network camera)

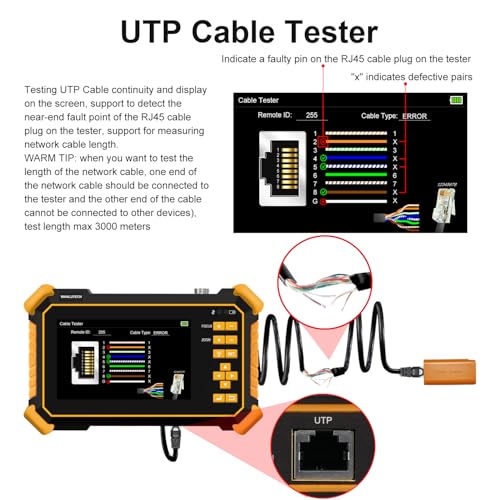

UTP Cable Tester: UTP cable continuity test and display on the screen, support to detect the near-end fault point of the RJ45 cable plug on the tester, support for measuring network cable length (When testing the length of the network cable, one end of the network cable should be connected to the tester and the other end of the cable cannot be connected to other devices), test length max 3000 meters
CVBS video signal test, 1 channel BNC input, NTSC/PAL (Auto adapt), PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols. Support audio test, 1 channel audio signal input, test the audio whether is normal

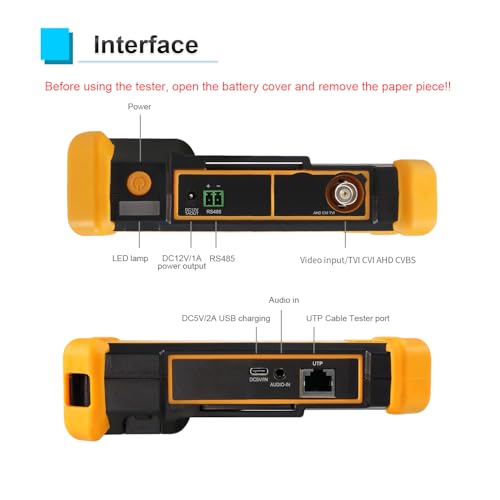

Built-in 3.7V/4000mAh battery. LED flashlight provides light for dark work environments. Power output: DC12V/1A. Power input: DC5V/2A. 4.3 inches screen, 480*272 resolution. Package include: 1x cctv tester, 1x 5V 2A USB charging cable, 1x BNC cable, 1x RS485 cable, 1x audio cable
PLEASE NOTE: there is a paper piece isolating the battery. Before using the tester, open the battery cover and remove the paper sheet. We are the manufacturer. Any questions, please let us know, We'll get back to you within 12 hours
