5" CCTV Tester AHD/TVI/CVI/CVBS HDMI/VGA PTZ/UTC (5900ACT)
55 reviews
Amazon
Features
- CCTV TESTER5-inch TFT LCD Screen 5 in 1 CCTV Tester PAL/NTSC (Auto adapt),Hybrid camera tester is able to test and debug coaxial 720P / 960P / 1080P /3MP/4MP/5MP/8MP AHD camera & CVI camera & TVI camera and traditional CVBS analog camera (IP &SDI cameras are not supported),The LCD screen video monitor with high resolution can show clear image when troubleshooting a security camera system

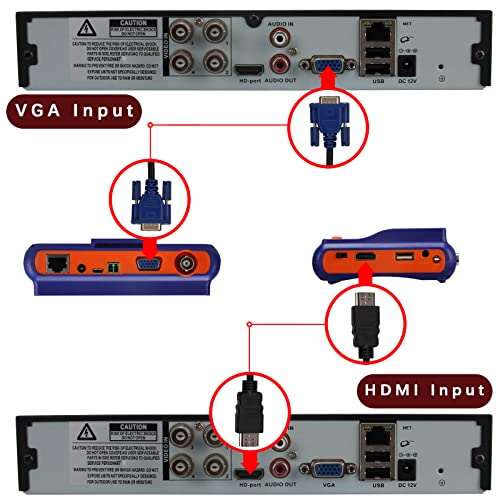

- HDMI APPLICATION HDMI input, support 1024x768 &1280x720 & 1280x1024 & 1440x900 & 1920x1080 resolution ,HDMI access will automatically switch to HDMI mode
- PTZ CONTROLSupport RS485,Compatible with multiple PTZ protocols (PELCO-D / PELCO-P ); baud rate: 2400, 4800, 9600, 19200 (optional), zooms in/out the lens, adjusts the focus, aperture/sets , PTZ continuing rotate test

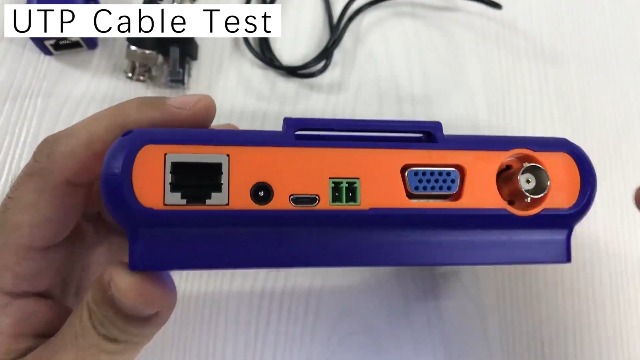

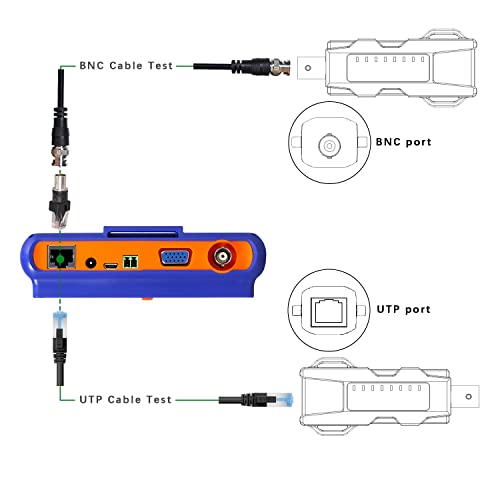

- APPLICATIONVGA input:VGA support 1024*768 and 1280*1024 and 1440x900 and 1920x1080 resolutions . UPT/BNC cable, measure the connecting status, display the sequence of connection and the NO, LAN cable, inspect camera quality, correct faraway installation, etc. UTP cable testing, analog video test, LED emergency lighting,DC 12v output power, Audio test, and multilingual OSD, The brightness and contrast and color saturation can be adjusable,It also can be used for charging mobile phone
- LONG WORK TIME Built in 3.7V 3000 mAh rechargeable Lithium polymer battery , Each 4 hours recharge lasts 5 work hours, DC 5V 1A power adapter also supplied for charging
Specifications
- 5900ACT:
- 5800ACT 6900ACT
- Add to Cart logShoppableMetrics("module-5", true):
- logShoppableMetrics("module-5", false) Buying Options Add to Cart logShoppableMetrics("module-5", true)

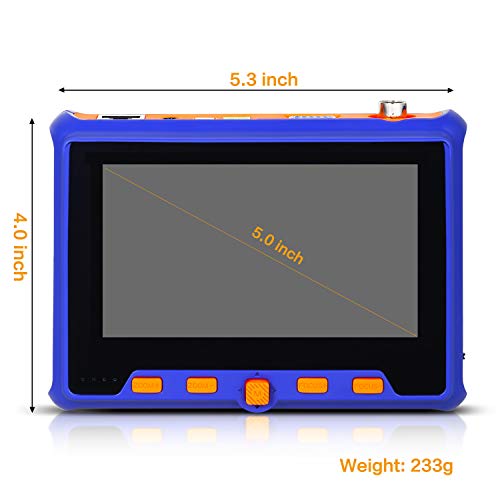

- Display Size:
- 5 '' 5 '' 5 ''
- Screen Resolution:
- 800*480 800*480 800*480
- Analog Camera:
- Yes Yes Yes
Price
$ 94.89
₵1,186.13
Quantity
1
